Structural Qsources: Installation Videos

Need to install and use a Qsource structural exciter?  Check below for a video!



1. Q-ISH

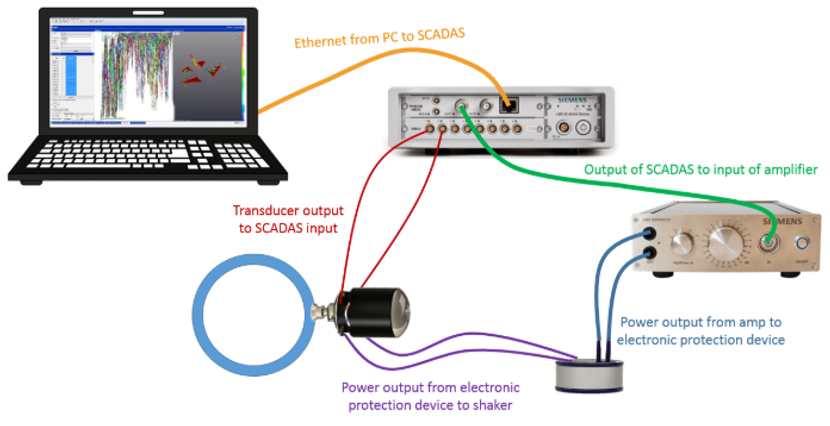

Installation video for an integration (Q-ISH) structural exciter:


Direct YouTube Link: https://youtu.be/HpsH-OrfwUQ

For more information on installing and using the Q-ISH shaker, see the knowledge article: How to setup the Simcenter Qsources integral shaker (Q-ISH)

2.  Q-MSH

Installation video for a miniature (Q-MSH) structural exciter:


Direct YouTube link: https://youtu.be/nc_MttuNM3o

Note that there are two outputs from the Q-MSH: force and acceleration.  The force cable has red circle.  See the calibration sheet for the sensitivities to enter in the software.

3.  Q-HSH

Installation video for a miniature (Q-HSH) structural exciter:


Direct YouTube link: https://youtu.be/Pojc23kZab0

For more information on installing and using the Q-HSH shaker, see the knowledge article: Simcenter Qsources Q-HSH Structural Exciter Tips

4. Q-TMP


Direct YouTube link: https://youtu.be/gFNp1GGBKN4

For more information on installing and using the Q-TMP shaker, see the knowledge article: Simcenter Qsources Thumper Shaker Setup
