Title	Simcenter SCADAS Hardware Cable Guide

URL Name	simcenter-scadas-hardware-cable-guide

Summary

Need additional or replacement cables for your SCADAS Mobile, SCADAS Recorder, or SCADAS XS?

Use the tables below to determine the cable you need!

Cable Connector Types - Definition and pictures of cable connectors.
Cable List - List of SCADAS cables with part number, description, and picture.
Cables per SCADAS Card - List of cables per SCADAS card.
Cable Connector Part Numbers - For ordering direct from manufacturer.

Cable Connector Types

Descriptions and pictures of connectors used on SCADAS cables.

Name	Comment	Photo
BNC Male (BNC Plug)	Common cable-end connector, used with a vast majority of transducers and signal types. Normally the connector to be plugged into a SCADAS module or adapter cable. *1951 Patent, see this link: https://en.wikipedia.org/wiki/BNC_connector
BNC Female (BNC Jack)	Common connector, use directly as a 'bulkhead' connector of some SCADAS modules, oftentimes the connector at the end of an adapter supplied with a frontend.
SMB Male (SMB Plug)	Connector type used in first-generation SCADAS Mobile systems and V8 input modules. Male end was supplied with SMB-BNC adapter cables.
SMB Female (SMB Jack)	Connector type use in first-generation SCADAS Mobile systems and V8 input modules. Female, or Jack, was a 'bulkhead' connector on frontend.
LEMO 00 Male (CAMAC Male)	Smallest LEMO connector used with SCADAS hardware, single-pin, no-keyed version supplied as part of the CAMAC-BNC adapter for V8-E cards or some source / output connections of certain XSI / SYSCON interface modules. The same LEMO is also used with some keyed, 3-pin or 4-pin adapter cables, generally for SCADAS tachometer, source, or vibration control stop connectors.
LEMO OB, 1B, 1S (LEMO Various)	Various size LEMO connectors, with varying internal number, arrangement, and gender of pins, depending on application, connection, and module type. Different versions may or may not have one or two 'keys' for alignment, with different spacing as needed to avoid improper connections.
SMA Reverse Polarity Male (SMA-RP Male)	Bluetooth, WiFi, and Pass-by Noise antennas use this connector type.
SMA Reverse Polarity Female (SMA-RP Female)	SCADAS 'bulkhead' mating connector for Bluetooth, WiFi, and Pass-by Noise antennas.

List of SCADAS Cables

Product ID numbers (for ordering replacements), descriptions, and pictures of SCADAS cables:

Cable Part number is typically on a sticker wrapped around the cable.
If having trouble finding cable, try the next section which lists SCADAS cards and associated cables.

Product ID	Price Book Description	Layman's Terms	Cable Part#	Cable Picture
SCM-CAS06	SCM spare CAMAC-BNC adaptor for Tacho	4-pin CAMAC(LEMO) to (1) BNC	80200023
SCM-CAS07	SCM CAMAC to two BNC adaptor for DAC	4-pin CAMAC(LEMO) to (2) BNC	80200022
SCM-CN4 Flexcode	SCM CN4 DB9 A/B splitter cable (*Not module!)	DB9 female plug to (2) DB9 male plugs	80200037
SCM-DPC05	SCM 2-m DC cable 1/2/3/5/6-slot frames	3-pin LEMO to DC (cigarette lighter) plug	80200501
SCM-DPC09	SCM 2-m DC cable 7/8/9/10-slot frames	3-pin LEMO to banana plugs	80200010
SCX-CAS03	SCx spare LEMO to BNC adapter VB8	7-pin LEMO to BNC	80200605
SCX-CAS04	SCx spare LEMO to pigtail adapter VB8	7-pin LEMO to bare wires	80200608
SCX-CAS05	SCx spare CAMAC-BNC adaptor for Vx & DAC	1-pin CAMAC(LEMO) to BNC	80200021
SCX-CAS08	SCx spare CAMAC-SubD adapter CAN ch	4-pin CAMAC(LEMO) to DB9 serial plug	80200030
SCX-CAS10	SCx 4-20mA transmitter cable adaptor	7-pin LEMO to bare wires with integrated 82 Ohm resistor	80200610

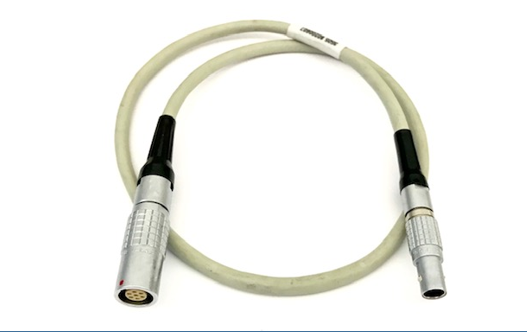

SCX-CAS11	SCx spare LEMO-MIC to LEMO-MIC for VM8	7-pin LEMO Plug to 7-pin LEMO socket	80200607

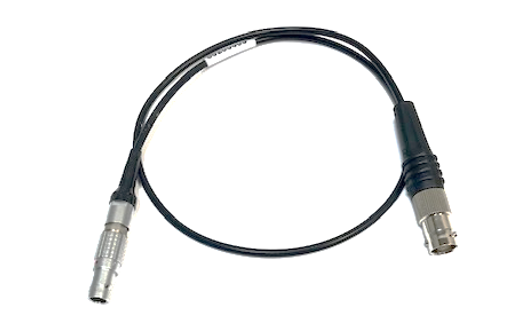

SCX-CAS12	SCx spare LEMO to BNC for VM8	7-pin LEMO to BNC	80200606
SCX-CAS14	SCADAS LEMO to 3 BNC connectors for XS and V24	9-pin LEMO to (3) BNC female	80200017
SCX-CAS15	SCADAS 2m breakout cable for V24M	HD SCSI to VHD SCSI
SCX-CAS17	SCx Satellite interface cable (5m)	8-pin to 8-pin ruggedized interconnect	80207105
SCX-CAS18	SCX SATELLITE INTERFACE CABLE (15M)	8-pin to 8-pin ruggedized interconnect	80207115
SCX-CAS20	CABLE for OBD-II and CAN-FLEXRAY	DB9 serial socket to vehicle ODB-II plug	Vector 22089
SCX-CAS22	SCADAS breakout box Remote On/Off	3-pin LEMO to 3-pin Socket / Terminals	80501020
SCX-DSCU	DAC-Shutdown Box cable (10m) (*Not button box!)	3-pin CAMAC(LEMO) to 3-pin LEMO	80209801
SCX-SIC37-1	SCx one m optical main/secondary cable	Fiber-optic main/secondary cable, 1 meter	80206001
*10/50/Lg	SCx 10-m (50-m) (Long) optical main/secondary cable	varying length of above cable	80206###
PCB Product	LEMO-(3)BNC Adapter	PCB version of XS / V24 LEMO-(3)BNC	010M137/000-04
PCB Product	LEMO-Triax Mini 8-36 4-pin	PCB XS / V24 direct triax cable	034M59/M003
PCB Product	LEMO-Triax Large ¼-28 4-pin	PCB XS / V24 direct triax cable	010M136/M003
PCB Product	LEMO-DC Triax 9-pin	PCB XS / V24 direct DC triax cable	037M29/M003
Dytran Product	LEMO-Triax Large ¼-28 4-pin	Dytran XS / V24 direct triax cable	6784A30

Cables by SCADAS Data Acquisition Card

List of SCADAS cards and associated cables.

Photo of Card	Card Name	Cables Included	Cable Replacement Options
	XSI (1st Gen.)	(4) SMB to BNC cables	SCM-CAS01: SMB to BNC (Set of 8)
	SCM	(1) FTP (LAN) (2) Tacho / IRIG (2) Source	(1) SCX-HIC-E2 (2) SCM-CAS06 (2) SCX-CAS05 CAMAC – BNC
	SCR2 SCR2E	(1) FTP (LAN) (2) Tacho / IRIG (1) Source (1) CAN (1) GPS	(1) SCX-HIC-E2 (2) SCM-CAS06 (1) SCM-CAS07 (1) SCX-CAS08 (1) SCX-GNSS
	SCM2 SCM2E	(1) FTP (LAN) (2) Tacho / IRIG (1) Source (1) CAN	(1) SCX-HIC-E2 (2) SCM-CAS06 (1) SCM-CAS07 (1) SCX-CAS08
	SCM2V SCM2EV	(1) FTP (LAN) (1) Stop Jumper (no wire) (1) Tacho / IRIG	(1) SCX-HIC-E2 (1) SCM-CAS06
	SCL220 SCL2E20	(1) FTP (LAN) (2) Tacho / IRIG (1) Source (1) CAN	(1) SCX-HIC-E2 (2) SCM-CAS06 (1) SCM-CAS07 (1) SCX-CAS08
	SCL220V SCL2E20V	(1) FTP (LAN) (1) Stop Jumper (no wire) (1) Tacho / IRIG	(1) SCX-HIC-E2 (1) SCM-CAS06
	AO16	Connecting cable to the connector box, and the connector block	Contact Siemens Office
	BDS4-E	(4) LEMO Plugs (no wire)	See Cable Connector Part Numbers below
	CIM2	(2) LEMO-CAT(Ethernet) Cable to Sony Camera	Contact Siemens Office
	CN4 FR4	(2) Sub-D Adapter Cables	Contact Siemens Office
	DAC4	None
	DCH4-E	(4) LEMO Plugs (no wire)	See Cable Connector Part Numbers below
	DB8-II DB8III DB8IIIC	SCX-CAS04: LEMO - Pigtail (Set of 8)	SCX-CAS04: LEMO - Pigtail (Set of 8) SCX-CAS03: LEMO - BNC (Set of 8)
	DB8A DB8B DB8C	SCX-CAS04: LEMO - Pigtail (Set of 8)	SCX-CAS04: LEMO - Pigtail (Set of 8) SCX-CAS03: LEMO -BNC (Set of 8)
	ESO64	(2) FTP (LAN)	(2) SCX-HIC-E2
	RV4	(4) Tacho (2) LEMO Plugs (no wire)	SCM-CAS06: 4-Pin LEMO to BNC (single cable)
	T8A	None
	V24 V24-II	None	(8) SCX-CAS14 Direct wire transducers and/or adapters available from PCB, Dytran, etc.
	V24M		(1) SCX-BOB24 Breakout box with 24 BNC’s (1) SCX-CAS15 2m cable to BOB24 (1) SCX-BOB24-RM2 19” rackmount kit (optional)
	V4-E	None
	V8	8 SMB to BNC cables	SCM-CAS01: SMB to BNC (Set of 8)
	Alternative to SCM-CAS01	www.cdint.com	BFSB-174LN-1 Order individually
	V8-E V8-II	8 CAMAC – BNC cables (included)	SCX-CAS05: CAMAC to BNC (Single cable, card requires 8 total)
	VS8-E	8 CAMAC – BNC cables (included) 1 Adapter for SPDIF (included)	SCX-CAS05: CAMAC to BNC (Single cable, card requires 8 total) Std. audio parts available from Radio Shack, etc.
	Alternative to SCX-CAS05	www.cdint.com	BFL00-174LN-1 Order individually
	V8b-E VS8b-E	None
	VB8-II VB8III-RT	(8) LEMO – Pigtail (bare wire) (8) LEMO – BNC	SCX-CAS04: LEMO - Pigtail (Set of 8) SCX-CAS03: LEMO -BNC (Set of 8)
	VCF4	(4) CAMAC(LEMO) – BNC	SCX-CAS05: CAMAC to BNC (Single cable, card requires 8 total) No cable sold by Siemens for charge, avail. from PCB (002B01), Dytran, etc.
	VC8-E VC8-ER VC8-QS	None
	VD8-E	8 CAMAC(LEMO) – BNC	SCX-CAS05: CAMAC to BNC (Single cable, card requires 8 total)
	VD8s-E	Sub-D Mating Connector	No part sold by Siemens; std. connector available online
	VD8b-E	None
	VD8MO-E	16 CAMAC(LEMO) – BNC	SCX-CAS05: CAMAC to BNC (Single cable, card requires 16 total)
	VM8-E	(8) LEMO – LEMO (mic.)	SCX-CAS11: LEMO – LEMO (Single cable, card requires 8 total) SCX-CAS12: LEMO to BNC (Pack of 8 cables)
	WFI2	(2) CAMAC(LEMO) – BNC (2) LEMO-CAT(Ethernet) Cable to Kistler Device	SCX-CAS05: CAMAC to BNC (Single cable, card requires 2 total)
	SC-XS06-E	Same as XS12-A, but with LEMO - 3 BNC (2 cables included)	Same as XS12A, except: SCX-CAS14: LEMO - 3 BNC (Single cable, card requires 2 total)
	SC-XS12-A	(1) Hard case – XS+Tablet (1) Soft bag (1) Dual Tacho (1) CAN LEMO–DB9 (1) USB Car DC Charger (1) USB AC Wall Charger (1) Micro USB–USB Cable (1) SPDIF Head Adapter (1) Sony 7” Tablet (1) 32Gb Micro SD Card (1) GPS (4) LEMO – (3) BNC	(1) SCX-CASE04 (1) SCX-CASE06 (1) SC-XS-CAS03 (1) SCX-CAS08 (1) SC-XS-PA4 (1) SC-XS-PA8 (1) SC-XS-USB1m (1) SC-XS-CAS02 (1) SCX-TAB (1) SC-XS-SD32G (1) SCX-GNSS (4) SCX-CAS14 LEMO – (3) BNC (qty. 4)
	SC-XS12-N	Same as XS12-A, plus (1) Mini I/O to CAT5e	Same as XS12A, plus: (1) SC-XS-LAN2M
	SCX-SWITCH	(1) Phoenix to LEMO cable (1) Phoenix to DC car lighter cable (1) AC/DC power brick and wall cord	None
PCB or Dytran Products	Siemens/LMS Specific Cables	Need (qty. 1) per ABC input on XS or V24
	SCX-CAS20	Not included with XS	SCX-CAS20: ODB-II – DB9 (qty. 1)
	SCX-ABH04	(1) Hard case for headset	(1) SCX-CASE04
	SCX-ABH04-C	None	Connects ABHH04 headset lemo to stereo jack
	SCX-ABH04-V	None	Required to use ABH04 headset when recording with Scadas Mobile/Lab V8 input module
	SCX-ABH04-B	None	Required to use ABH04 headset when recording with Scadas Mobile/Lab VB8 input module
	SCX-ABH04-C2B	Sold in pairs, order (1) per SCX-ABH04-V	Required to use ‘V’ adapter with BNC input
	Adapter to use SCX-ABH04-V with V8 SMB inputs	www.cdint.com	(2) L00FSB-174LN-1

Cable Connector Part Numbers

List of manufacturer model numbers for specific connectors.

Product	Input and Example Plug	Input Description	Plug Description	LEMO Part Number
SCX-V		Vibco SYSCON-II	LEMO Stop Jumper Plug	FGG.00.303.CLAD
VB / DB8		Universal Input	LEMO Plug (ea. channel)	FGB.0B.307.CLAD
VM8		Mic. / V / ICP Input	LEMO Plug (ea. channel)	FGG.0B.307.CLAD
Tacho / IRIG		SYSCON-II Tacho / IRIG Input	LEMO Plug (2 per SYSCON, 4 per RV4)	FGG.00.304.CLAD
Dual Source		SYSCON-II Source	LEMO Plug (1 per module)	FGG.00.304.CLAD
IE		RV4 Input	LEMO Plug (2 per module)	FGG.1B.310.CLAD
V8 / VD8		V8/VD8/VS8 Input	LEMO Plug (8 per module)	FFA.00.250.CTAC
V24		V24 (3-ch.) Input	LEMO Plug (8 per module)	FGG.0B.309.CLAD
BDS4-E		BDS4 Input	LEMO Plug (4 per module)	FFA.1S.306.CLAC
DCH4-E		DCH4 Input	LEMO Plug (4 per module)	FGG.1B.302.CLAD
GPS		SYSCON-II GPS	3v Antenna w/ MCX Plug	www.4starelectronics.com
CANBUS		SYSCON-II CAN	LEMO Plug (1 per module)	FGG.00.304.CLAD
Power		SCM/R Power Supply	LEMO Plug (1 per frame)	FGG.1B.303.CLAD62Z
SCX-CAS22		SCR2E0x Remote On/Off Breakout Box	LEMO Plug (1 per frame) Screw Terminals for connection of power leads that will automatically turn on / off SCADAS Recorder	FGG.1B.303.CLAD62Z
