The Simcenter SCADAS Mobile and SCADAS Recorder (formerly called LMS SCADAS) are part of a family of modular data acquisition devices used for capturing dynamic signals at a rate up to 204.8 kHz sampling rate per data channel.
The systems can read a variety of transducers, including strain gauges, accelerometers, microphones, thermocouples, speed encoders, GPS, digital CAN-bus, and more…

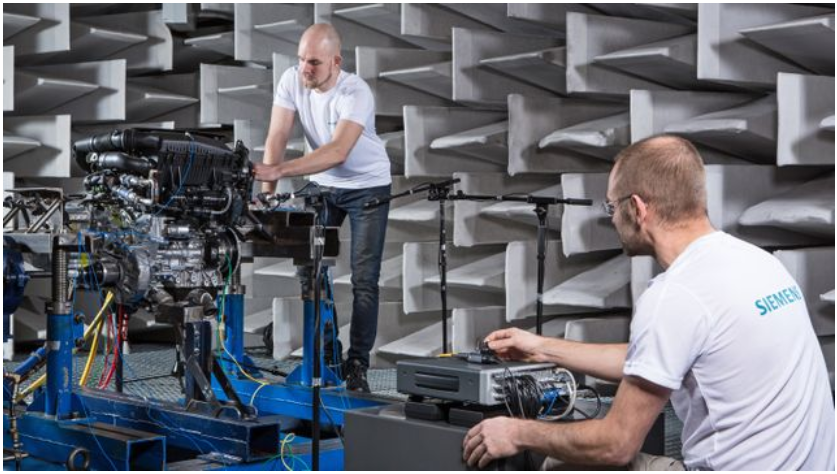

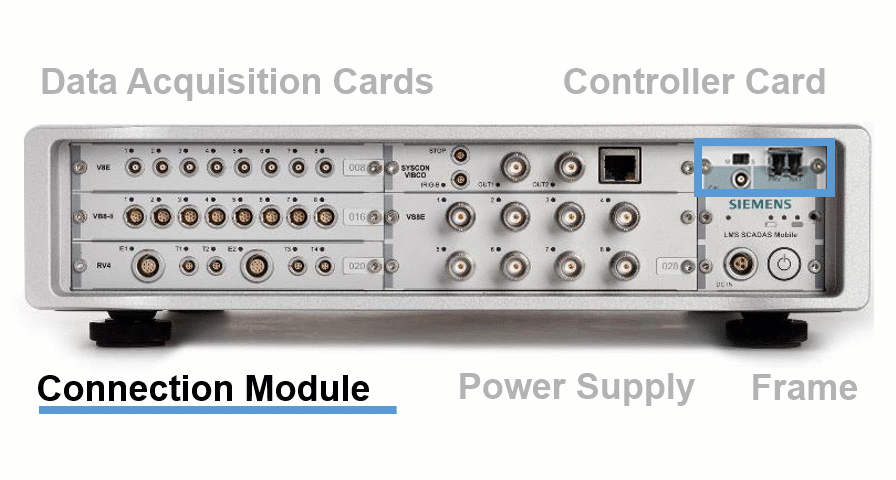

The Simcenter SCADAS Mobile and Recorder are modular, and consist of a combination of:
Frame: Housing unit which contains all cards, controllers, and power supply. Comes in variety of sizes.
Connector Module: Option used to combine or link multiple SCADAS frames together.
Power Supply: Contains battery for autonomous operation, also accepts external AC or DC power.
Mobile OR Recorder Controller Card:
The controller card is referred to as a XSI or Syscon card. It is included with all SCADAS frames with the exception of slave frames.
Mobile: Ethernet interface for linking to control PC with Test.Lab software, two source outputs, two tachometer/encoder inputs.
Recorder: Same as Mobile with addition of Compact Flash for un-attended data acquisition, WiFi or Bluetooth for remote control, GPS/IRIG-B, and CAN-bus inputs.
Data Acquisition cards: Typically 8 or 24 input channels per card; see variety of card options in table below.
SCADAS is an acronym for Signal Conditioning and Data Acquisition System.
This Simcenter SCADAS Mobile and SCADAS Recorder article covers:
Continue reading to learn more about the SCADAS Mobile and Recorder solutions!
1. Features
General:
Fanless cooling system allows for quiet acoustic measurements.
Temperature
Operating: -20 degrees Celsius to +55 degrees Celsius, -4 degrees Fahrenheit to +131 degrees Fahrenheit.
Storage: -20 degrees Celsius to +70 degrees Celsius, -4 degrees Fahrenheit to +158 degrees Fahrenheit.
Military-standard (MIL-STD)-810F qualified for shock and vibration:
20-2000 Hz random vibration at 7.7 G rms.
60 G peak sawtooth shock pulse, 11 milliseconds, 3 shocks per direction.
Power automatically switches as needed between:
Internal Battery: Depending on number of channels active, up to 2.5 hours of battery-only operation.
AC Power – External mains adaptor for wall outlets.
DC Power – 10.8 to 42 Volts with inverse voltage protection.
Annual hardware calibration fully compliant with ISO9001-2015 standards.
Inputs:
Accommodates 8 to 216 channels (multiples of 8 channels) in a single frame, depending on measurement cards used.
Up to 204.8 kHz sampling rate per channel and throughput up to 14 MSamples/s with a 150-dB dynamic range, with 24-bit delta-sigma ADC technology.
Includes CAN Bus, IRIG-B, dual tachometer and signal generator support, with optional GPS.
Interfaces:
High-speed Ethernet host interface.
Optional Recorder model can work autonomously as a blind recorder with Compact Flash, tablet-operated recorder, or frontend system for laptop or PC (GPS standard with recorder model only)
Fiber-optic connection module for expandability with fully synchronized data saved to one file
Size and Weight:
Ranges from 5.5 lbs (2.5 kg) to 23 lbs (10.5 kg) based on frame size and number of cards
2. Frames:
Each SCADAS Mobile or SCADAS Recorder can be configured to customer-specific testing preferences:
SCADAS frames include either a SCADAS Mobile or SCADAS Recorder controller card, unless ordered as a slave frame. Any frame size can be ordered either as a Mobile or as a Recorder.
Empty slots are allowed. Expansion slots do not need to immediately be filled with a data acquisition card, since they can be installed later. Additions will be automatically recognized with no additional software configuration, etc.

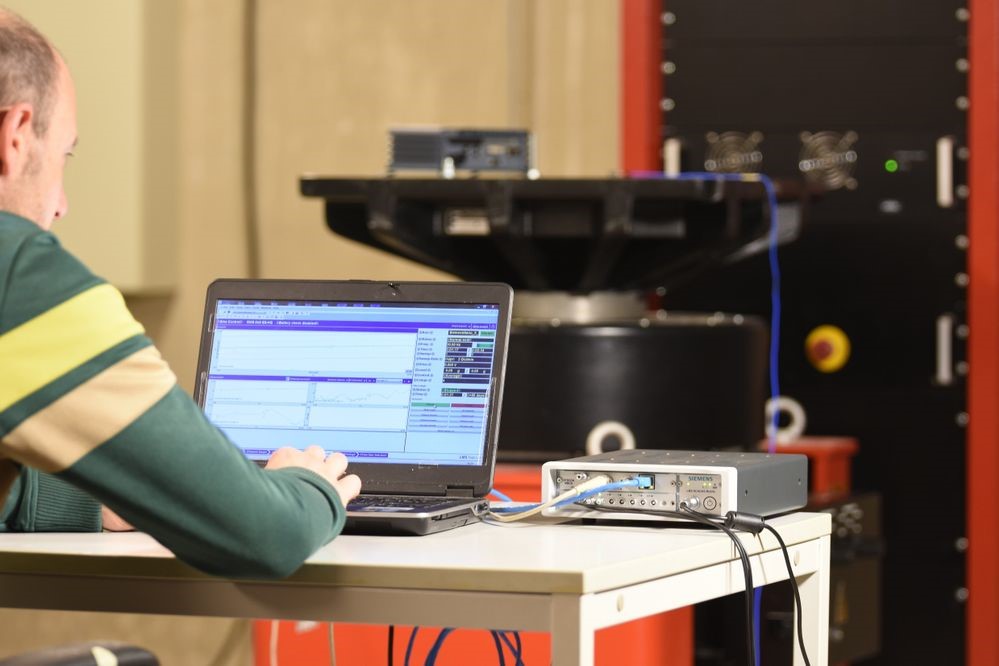

For Vibration Control applications, the SCADAS can be ordered with a modified source. The modified source has shutdown capability to avoid unintended test article and shaker system damage.

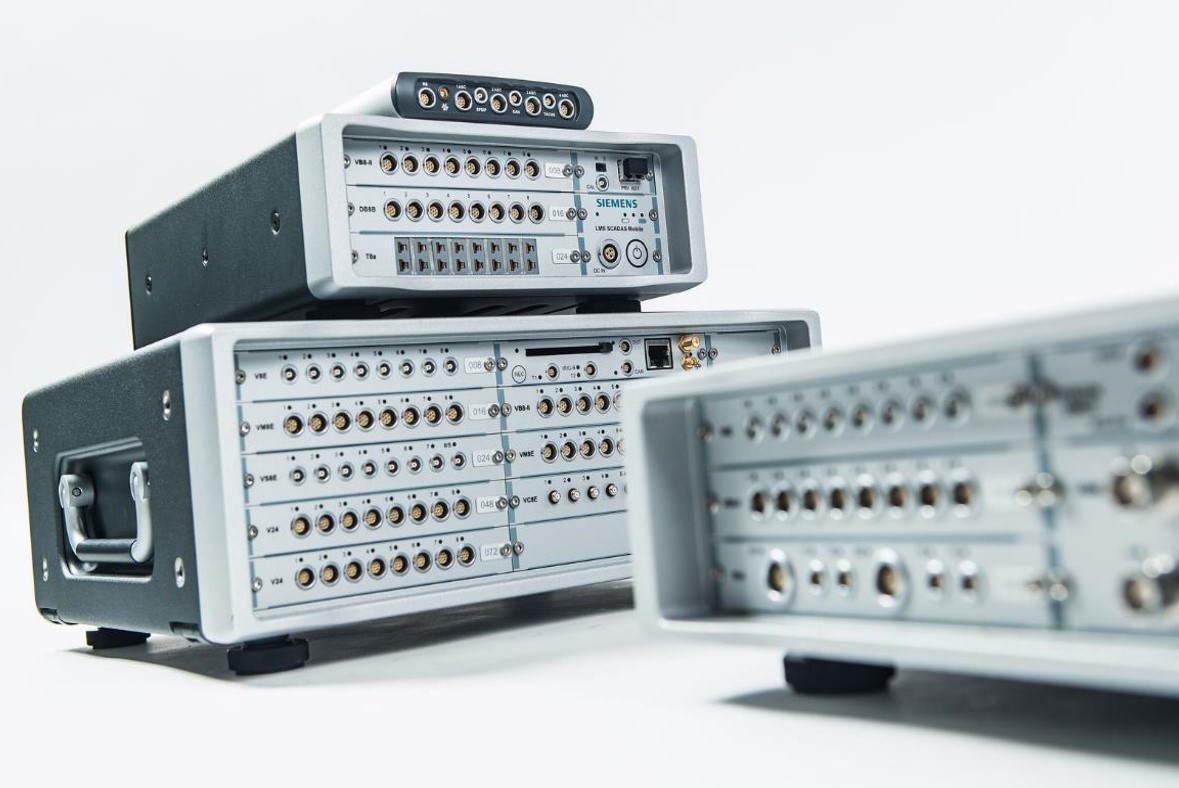

Pictured below are SCADAS hardware models with distinct inputs and features:

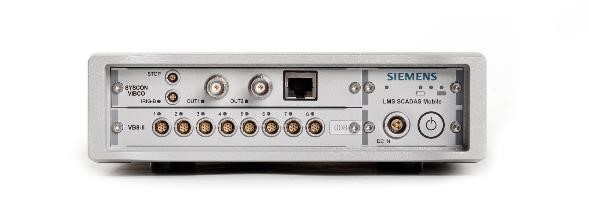

Simcenter SCADAS Mobile 01
Accommodates 8 or 24 channels through 1 card expansion slot
5.5 lbs (2.5 kg), 203 x 58 x 260 mm
Nominal 2.5 hour battery

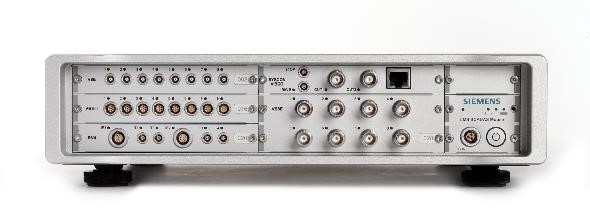

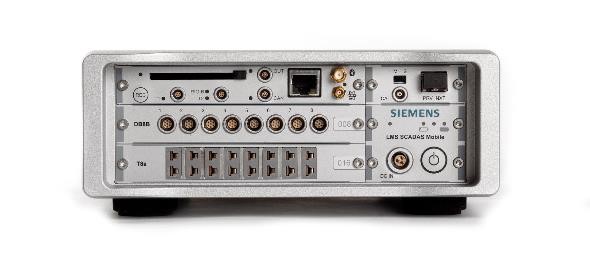

Simcenter SCADAS Recorder 02
Modular system for 8, 16, 24, or 48 input channels through 2 card expansion slots
7.7 lbs (3.5 kg), 216 x 76 x 271 mm
Connector expansion slot available for daisychaining additional frames
Nominal 1.5 hour battery
Simcenter SCADAS Mobile 05
Accommodates 8-120 channels (multiple of 8 or 24) via 5 expansion slots
13.7 lbs (6.2 kg), 340 x 78 x 295 mm (Laptop-sized frame)
Connector expansion slot available for daisychaining additional frames
Nominal 1 hour battery

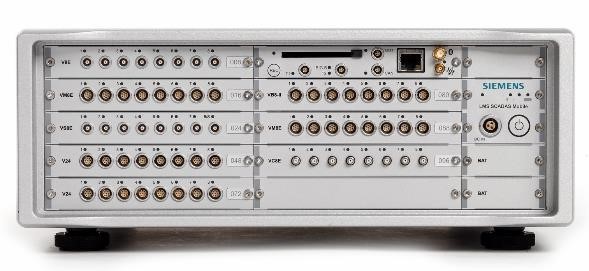

Simcenter SCADAS Recorder 09
Accommodates 8-216 channels (multiples of 8 or 24) through 9 expansion slots
23 lbs (10.5 kg), 345 x 140 x 300 mm
Connector expansion slot available for daisychaining additional frames
Below is a list of cards available for the SCADAS frames. Some key points:
Cards need to be placed in either an existing SCADAS frame or new SCADAS frame to function.
Cards typically consist of either 8 or 24 input channels.
Base codes in table below (e.g., VB8). Cards when ordered will have extensions, for example "E" for Enhanced, or "-II" or "-III" for 2nd or 3rd generation (e.g., VB8-II).
Cards often have cable adaptors included. For example, LEMO to BNC adaptors, etc. Check with your sales representative to understand which cables are included when purchasing a specific card.
Some cards can have options for connector type, for example D-Shell connector instead of individual inputs.
V4/V8/VS8
4 or 8-channel voltage/ICP input module; suitable for ICP accels and microphones.
VS8 module version also supports SPDIF digital audio sources.
24-bit ADC with up to 204.8 kHz sampling frequency.
Alias free bandwidth of 92 kHz with 150 dB dynamic range.

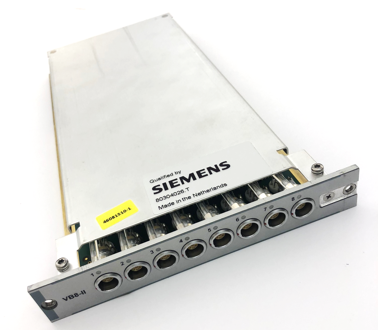

VB8
8-channel universal input module supports signal conditioning for voltage, ICP (suitable for ICP accels and microphones), DC-bridge, AC-bridge, active sensors, and potentiometers.
Bridge completion resistors 120 Ω and 350 Ω with internal shunts for calibration.
24-bit ADC with up to 204.8 kHz sampling frequency.
Alias free bandwidth of 92 kHz with 150 dB dynamic range.
V24
24-channel voltage/ICP input module; suitable for ICP accels and microphones.
Ideal support for data acquisition in X, Y, and Z directions using tri-axial accelerometers.
Single-ended input via 9-pole lemo (V24) or 68 pin HD D-SUB connector (V24M).
24-bit ADC with up to 51.2 kHz sampling frequency.
Alias-free bandwidth of 23 kHz and 150 dB dynamic range.
8-channel module has differential and single-ended inputs supporting voltage inputs and piezoelectric ICP sensors.

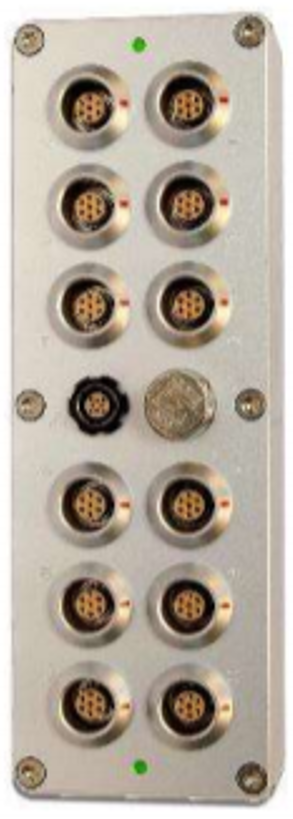

Pictured with optional D-Shell connector.
VD8MO version additionally offers monitoring output.
4. Accessories
Standard
Power Cables included with SCADAS:

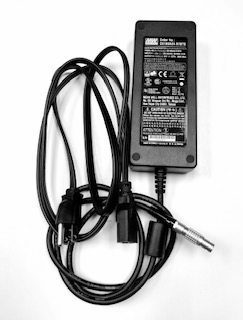

AC Wall Outlet (SCM-AC/DC-II): External mains adaptor for wall outlets for SCADAS frames.

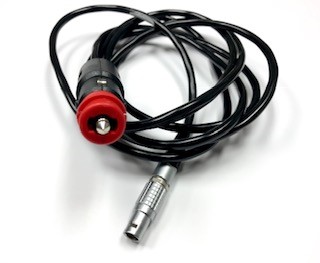

DC Auxiliary Plug (SCM-DPC05): For use with mobile power adapter for SCM05 frame or smaller.
DC Auxiliary Plug (SCM-DPC09): For use with mobile power adapter for SCM09 frame or larger
Grounding Cable
Ground Cable (SCM-CAGND): For grounding SCADAS chassis
Optional
Wireless Android Tablet (SCX-TAB) and Simcenter Testlab Control App software (SM-SCR.01):
For wireless remote startup and viewing of data with SCADAS Recorder.
Data is stored to Compact Flash on SCADAS Recorder.

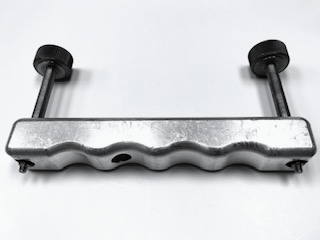

SCADAS Card Puller (SCM-MODXTR): For proper removal of input cards from SCADAS frames.

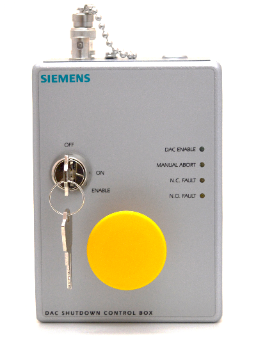

DAC Shutdown: The DAC shutdown unit (SCX-DSCU-II) is a manual override for users to shutdown a closed loop vibration control test while in progress.
Card Puller (SCM-MODXTR)
DC Auxiliary Plug (SCM-DPC05)
AC Wall Outlet (SCM-AC/DC-II)
DAC Shutdown (SCX-DSCU-II)
5. Applications and Case Studies

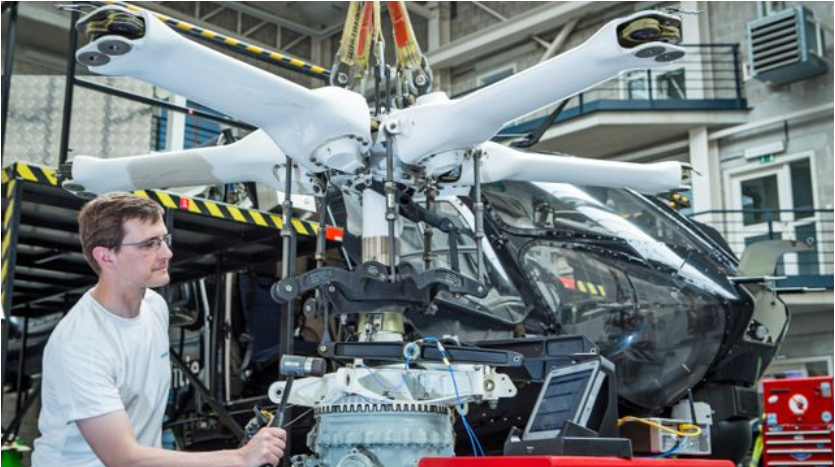

Applications
SCADAS hardware requires Simcenter Testlab software to setup, acquire, and analyze digitized data. Simcenter Testlab token licensing is a popular option.
