Simcenter Testlab 2506 is here!

Simcenter Testlab 2506 was released in June 2025. "2506" is 25 for the year 2025 and 06 for the month of June.

Previous release was Simcenter Testlab 2406.

*** See the PDF attached to this article (upper right) for a full description of the new features of Simcenter Testlab 2506. ***


ACOUSTICS

New acoustic highlights of Simcenter Testlab 2506 include:
  • Simcenter Testlab Neo Sound Quality
    • FFT Based Articulation Index added in addition to filter based Articulation Index
    • Sound Metric Map calculations (Prominence Maps, Tone-to-Noise maps, Loudness maps)
  • Sound Power
    • Frequency and octave sections on sound power map
    • Overall level on sound power map
    • K1 correction for background noise for directivity
  • Pass-by Noise Testing
    • Wind speed data max over 10 recordings
    • Driver aid extensions
   User-added image

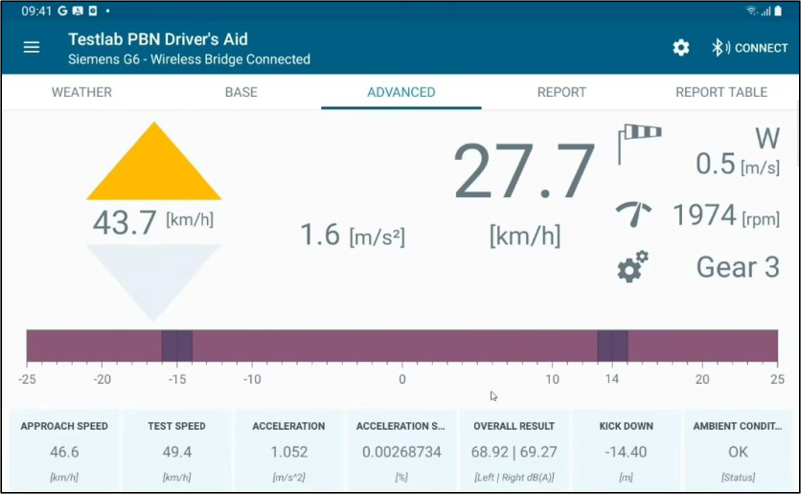

Summary reports are among the extensions for the pass-by noise driver's aid.


DURABILITY

New durability highlights include:
User-added image

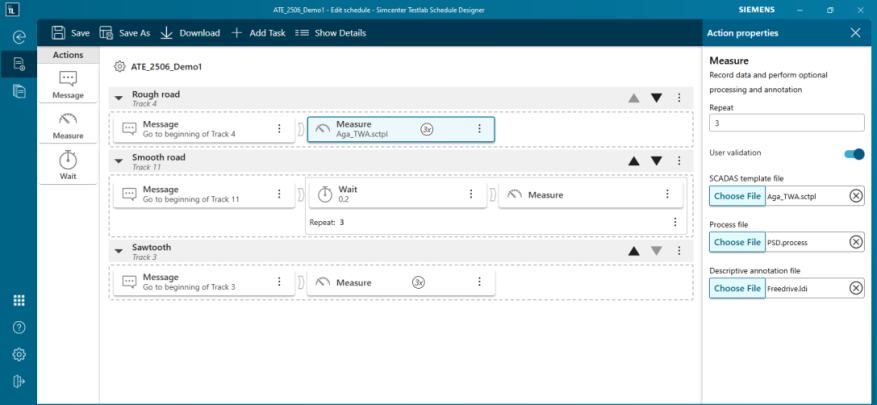

Test scheduler in Simcenter SCADAS RS Recorder App.


GENERAL ACQUISITION

  • Virtual channel support in MIMO FRF Testing (Testlab classic)
  • Plug and Play Camera Support for USB Cameras in Neo Time Data Acquisition
User-added image
USB Camera support in Simcenter Testlab Neo Time Data Acquisition.


MODAL ANALYSIS


Direct YouTube link: https://youtu.be/RJJSFperJhQ

Highlights of Simcenter Testlab 2506 Modal Analysis include:

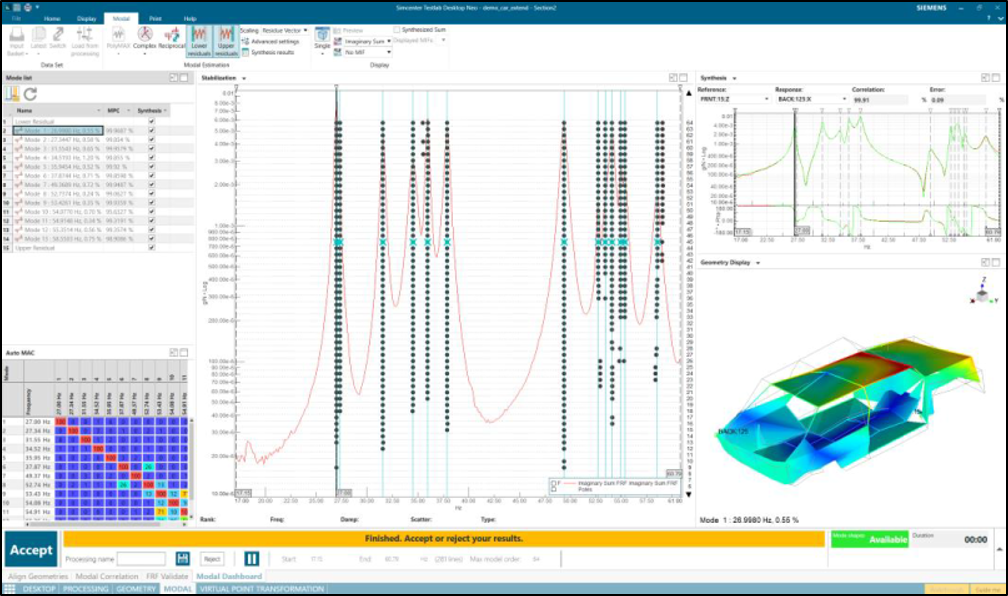

Simcenter Testlab Neo Modal Analysis has Artificial Intelligence (AI) powered mode selection.  After selecting the modes, the Modal Assurance Criterion and Modal Synthesis are automatically calculated.



NEO PROCESS DESIGNER

New features in 2506 Neo Process Designer include:
  • Multi Reference Processing for FRFs and Crosspowers including SVD truncation and balancing
  • Additional map statistic methods (averaged and peak order spectrum)
  • Block methods in Simcenter Testlab Neo Process Designer: Import block method and Align X Axis Block method
  • Extensions to variables including conditions and Excel
User-added image

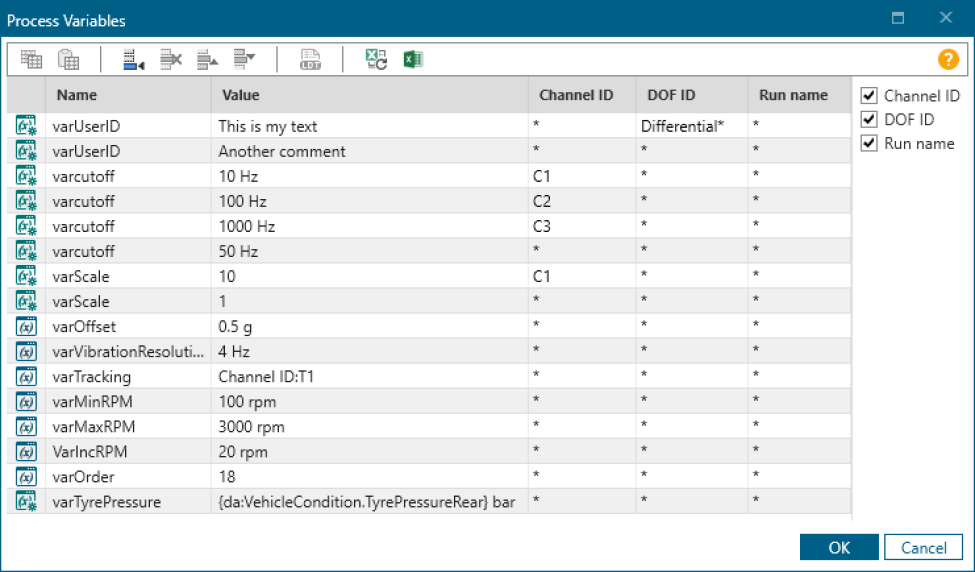

The use of variables in processes includes conditional usage of variables and support of Excel.


TRANSFER PATH ANALYSIS


Direct YouTube link: https://youtu.be/ALVE7Plu6Fg

New features in 2506 Transfer Path include:
  • Transfer Path Analysis in Neo:
    • Direct
    • Matrix Inversion
    • In-situ TPA for blocked forces
  • Dynamic mount stiffness calculator in Neo
  • Principal component multi-reference processing in Neo Process Designer
  • Noise simulator pre-processing including order extraction and coherent spectra processing (Neo Process Designer)
User-added image

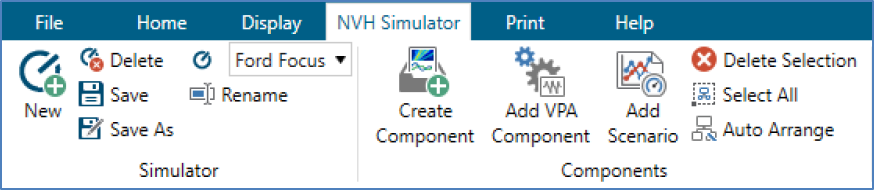

Noise simulator capabilities are extended in the 2506 release to include decomposition methods.

See the PDF attached to this article for a full description of the new features of Simcenter Testlab 2506.
